Pedus-U

Locking foot plate system PEDUS-U

Indications:

  • Arthrodesis of the calcaneaocuboidal joint.
  • Arthrodesis of the tarsometatarsal joint.
  • Extension osteotomy of the calcaneus.
  • Fractures in the back and middle foot.
  • Closing osteotomies.

Product Features:

  • Metaphyseal osteotomy with large cancellous mating surfaces.
  • Good correction possibilities; depending on the metatarsal index, addition (open wedge) or subtraction.
  • Good combination possibilities with other other interventions.

The surgical technique for Marquardt PEDUS-U:

  • Marquardt PEDUS-O & -U  – PDF

Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.

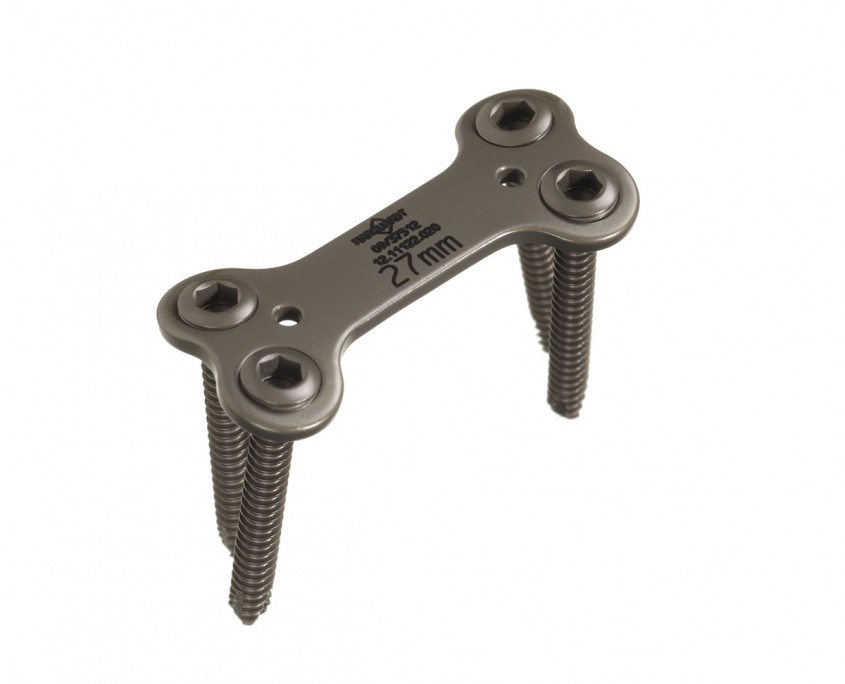

Marquardt Pedus-U plate

 Order No.  Description.
 12.11122.012  Plate Length: 19 mm.
 12.11122.014  Plate Length: 21 mm.
 12.11122.016  Plate Length: 23 mm.
 12.11122.018  Plate Length: 25 mm.
 12.11122.020  Plate Length: 27 mm.

Cortical Locking Screw – width 2.3 mm

 Order No.  Description.
 12.03423.012  Length: 12 mm
 12.03423.014  Length: 14 mm
 12.03423.016  Length: 16 mm
 12.03423.018  Length: 18 mm
 12.03423.020  Length: 20 mm
 12.03423.022  Length: 22 mm
 12.03423.024  Length: 24 mm
 12.03423.026  Length: 26 mm

Cortical Screw – width 2.3 mm

 Order No.  Description.
 12.03424.012  Length: 12 mm
 12.03424.014  Length: 14 mm
 12.03424.016  Length: 16 mm
 12.03424.018  Length: 18 mm
 12.03424.020  Length: 20 mm
 12.03424.022  Length: 22 mm
 12.03424.024  Length: 24 mm
 12.03424.026  Length: 26 mm
