ActivaScrew Cannulated
Description

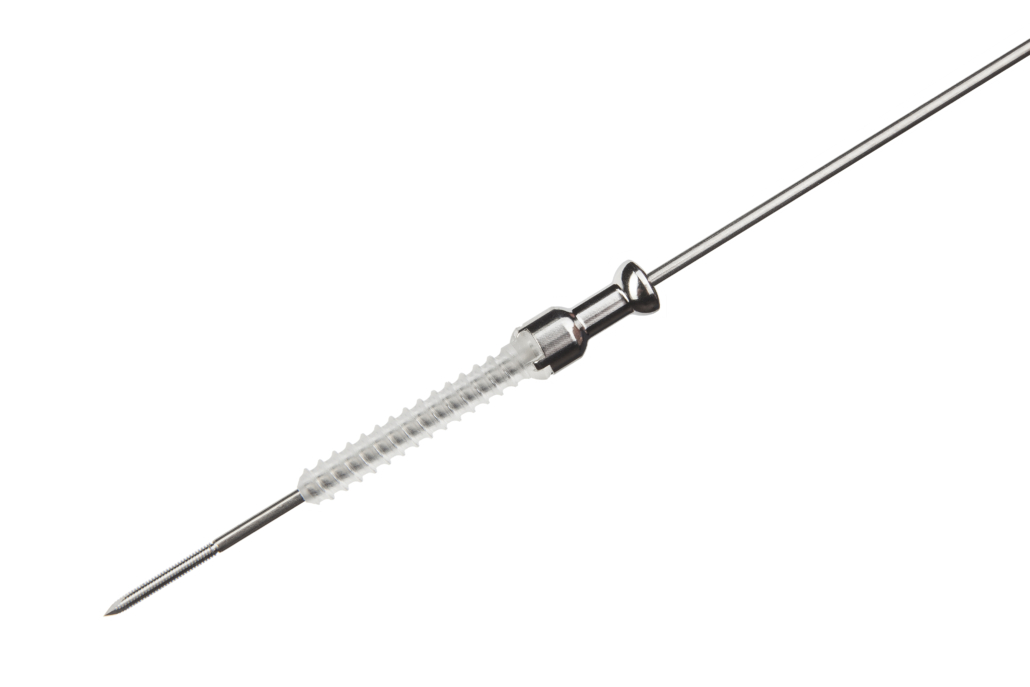

Bioretec’s ActivaScrew Cannulated offers additional surgery precision, since the screw can be installed using a guide wire. It offers a broad range of fully threaded and partially threaded cannulated screws for fixation of fractures and osteotomies. ActivaScrew™ Cannulated is used in lower and upper extremities and is fully bioabsorbable product that dissolves in human body in approximately two years and is eventually replaced by patients own bone.
ActivaScrew™ Cannulated exploits Bioretec’s patented Auto-Compression™ technology which reduces the risk of unstable fixation. This technology tightens the fracture line and provides additional support to proper ossification. Patented Auto-Compression™ is caused by dimensional changes in the screw in human body conditions: its diameter will expand, and its length will decrease to produce the compression.
This implant allows precise installation with guide wire and has a sufficient number of size variations. With bioabsorbable implants the need for implant removal operation is removed, which leads to saving in health care resources. Like all Activa™ series implants, ActivaScrew™ Cannulated can be cut for example with hot wire or scissors.
Surgical Technique
The surgical technique for Bioretec ActivaScrew Cannulated:
- Bioretec ActivaScrew Cannulated – PDF
Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.
Guidance Video
See videos for guidance of using the Bioretec ActivaScrew Cannulated
Insertion of Bioretec ActivaScrew Cannulated Video
Order
Fully Threaded
| Order No. | Description |
| B-ASC-3520 | 3.5 mm x 20 mm |
| B-ASC-3524 | 3.5 mm x 24 mm |
| B-ASC-3528 | 3.5 mm x 28 mm |
| B-ASC-3532 | 3.5 mm x 32 mm |
| B-ASC-3536 | 3.5 mm x 36 mm |
| B-ASC-3540 | 3.5 mm x 40 mm |
| B-ASC-4040 | 4.0 mm x 40 mm |
| B-ASC-4045 | 4.0 mm x 45 mm |
| B-ASC-4050 | 4.0 mm x 50 mm |
| B-ASC-4055 | 4.0 mm x 55 mm |
| B-ASC-4060 | 4.0 mm x 60 mm |
| B-ASC-4065 | 4.0 mm x 65 mm |
| B-ASC-4070 | 4.0 mm x 70 mm |
| B-ASC-4080 | 4.0 mm x 80 mm |
| B-ASC-4090 | 4.0 mm x 90 mm |
| B-ASC-4540 | 4.5 mm x 40 mm |
| B-ASC-4550 | 4.5 mm x 50 mm |
| B-ASC-4560 | 4.5 mm x 60 mm |
| B-ASC-4570 | 4.5 mm x 70 mm |
| B-ASC-4580 | 4.5 mm x 80 mm |
| B-ASC-4590 | 4.5 mm x 90 mm |
Partially Threaded LAG
| Order No. | Description |
| B-ALC-3524 | 3.5 mm x 24 mm, thread 10 mm |
| B-ALC-3526 | 3.5 mm x 26 mm, thread 12 mm |
| B-ALC-3528 | 3.5 mm x 28 mm, thread 12 mm |
| B-ALC-3530 | 3.5 mm x 30 mm, thread 14 mm |
| B-ALC-3535 | 3.5 mm x 35 mm, thread 14 mm |
| B-ALC-3540 | 3.5 mm x 40 mm, thread 14 mm |
| B-ALC-3545 | 3.5 mm x 45 mm, thread 15 mm |
| B-ALC-4035 | 4.0 mm x 35 mm, thread 18 mm |
| B-ALC-4040 | 4.0 mm x 40 mm, thread 20 mm |
| B-ALC-4045 | 4.0 mm x 45 mm, thread 22 mm |
| B-ALC-4050 | 4.0 mm x 50 mm, thread 24 mm |
| B-ALC-4055 | 4.0 mm x 55 mm, thread 26 mm |
| B-ALC-4060 | 4.0 mm x 60 mm, thread 28 mm |
| B-ALC-4065 | 4.0 mm x 65 mm, thread 30 mm |
| B-ALC-4070 | 4.0 mm x 70 mm, thread 32 mm |
| B-ALC-4080 | 4.0 mm x 80 mm, thread 40 mm |
| B-ALC-4090 | 4.0 mm x 90 mm, thread 46 mm |
| B-ALC-4540 | 4.5 mm x 40 mm, thread 20 mm |
| B-ALC-4545 | 4.5 mm x 45 mm, thread 22 mm |
| B-ALC-4550 | 4.5 mm x 50 mm, thread 24 mm |
| B-ALC-4555 | 4.5 mm x 55 mm, thread 26 mm |
| B-ALC-4560 | 4.5 mm x 60 mm, thread 28 mm |
| B-ALC-4565 | 4.5 mm x 65 mm, thread 30 mm |
| B-ALC-4570 | 4.5 mm x 70 mm, thread 32 mm |
| B-ALC-4580 | 4.5 mm x 80 mm, thread 40 mm |
| B-ALC-4590 | 4.5 mm x 90 mm, thread 46 mm |
