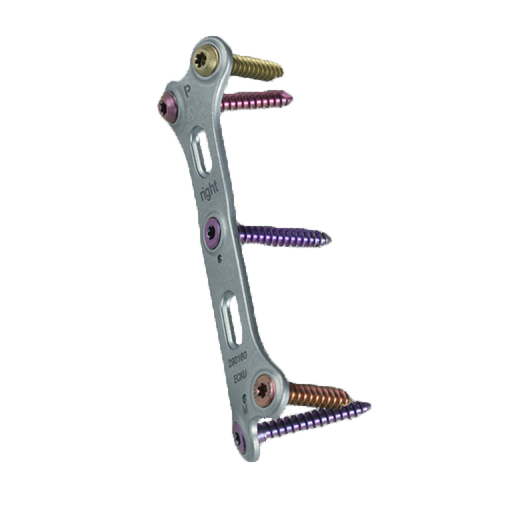

Hallu-Lock S Plate
Description
The Hallu-Lock solution is a locked system dedicated to first MTP arthrodesis. For fixation of bone fractures or for bone reconstruction.
- Color coded MTP arthrodesis plate
- Dorsal flexion bending adjustment possibility to match specific patient anatomy
- 10° valgus- and 10° dorsiflexion with 2 different axes of rotation.
- Material: Titanium Alloy TA 6V.
- Monobloc fixation with Surfix locking system.
- Sterily packaged.
More information can be found in the surgical technique.
Surgical Technique
The surgical technique for Integra HALLU-Fix C Plate:
- Integra HALLU-Fix C Plate – PDF
-
Combined surgical technique for Hallu-Fix and Hallu-Lock
-
Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.
Order
| Order No. | Description | Color Code | Length | Side |
| 290 150s | Size 1 | Green | 40 mm. | Right |
| 290 155s | Size 2 | Yellow | 45 mm. | Right |
| 290 160s | Size 3 | Blue | 50 mm. | Right |
| 290 250s | Size 1 | Green | 40 mm. | Left |
| 290 255s | Size 2 | Yellow | 45 mm. | Left |
| 290 260s | Size 3 | Blue | 50 mm. | Left |
