I.B.S Neutralisation Screw
Description

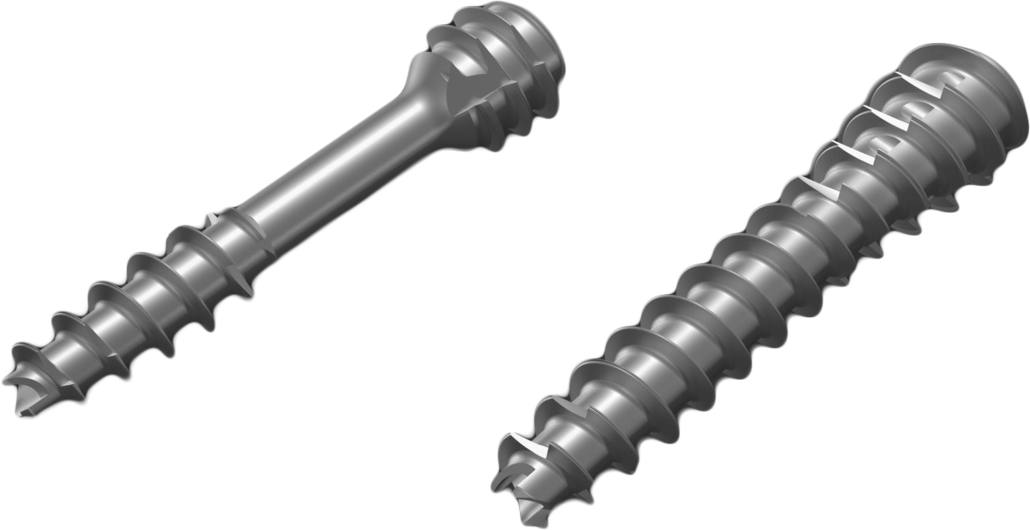

Innovative Bone Synthesis Neutralisation Screws
- The design of the I.B.S screw is optimized to distribute the compression effort, maximize and facilitate the osteosynthesis
- The I.B.S screw is available in 6.5mm and 8.0mm. The I.B.S compression and neutralization screws are cannulated, self-drilling and self-tapping.
- Made in titanium Ti6Al4V, all the screws are delivered in sterile tubes.
Surgical Technique
The surgical technique for I.B.S Neutralisation 6.5 & 8.0 mm Screw:
- I.B.S Neutralisation 6.5 & 8.0 mm Screw – PDF
Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.
Order
Neutralisation Screw – Diameter 6.5 mm
| Order No. | Description |
| S65 ST235 | 35 mm |
| S65 ST240 | 40 mm |
| S65 ST245 | 45 mm |
| S65 ST250 | 50 mm |
| S65 ST255 | 55 mm |
| S65 ST260 T25 | 60 mm |
| S65 ST265 | 65 mm |
| S65 ST270 | 70 mm |
| S65 ST275 | 75 mm |
| S65 ST280 | 80 mm |
Neutralisation Screw – Diameter 8.0 mm
| Order No. | Description |
| S80 ST250 T30 | 50 mm |
| S80 ST255 T30 | 55 mm |
| S80 ST260 T30 | 60 mm |
| S80 ST265 T30 | 65 mm |
| S80 ST270 T30 | 70 mm |
| S80 ST275 T30 | 75 mm |
| S80 ST280 T30 | 80 mm |
| S80 ST285 T30 | 85 mm |
| S80 ST290 T30 | 90 mm |
| S80 ST295 T30 | 95 mm |
| S80 ST300 | 100 mm |
| S80 ST305 | 105 mm |
| S80 ST310 | 110 mm |
