Pedus-O

Locking foot plate system PEDUS-O

Indications:

  • Hallux valgus with persistent complaints
    • Pseudoexostosis
    • Large toe basal joint
  • Intermetatarsal angle > 12 degrees.
  • No severe arthrosis in the large toe basal joint. With slight arthrosis, osteotomy os preferred with plantarization of the metatarsal I, in order to avoid increased pressure on the joint.

Product Features:

  • Metaphyseal osteotomy with large cancellous mating surfaces.
  • Good correction possibilities; depending on the metatarsal index, addition (open wedge) or subtraction.
  • Good combination possibilities with other other interventions.

The surgical technique for Marquardt PEDUS-O:

  • Marquardt PEDUS-O & -U  – PDF

Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.

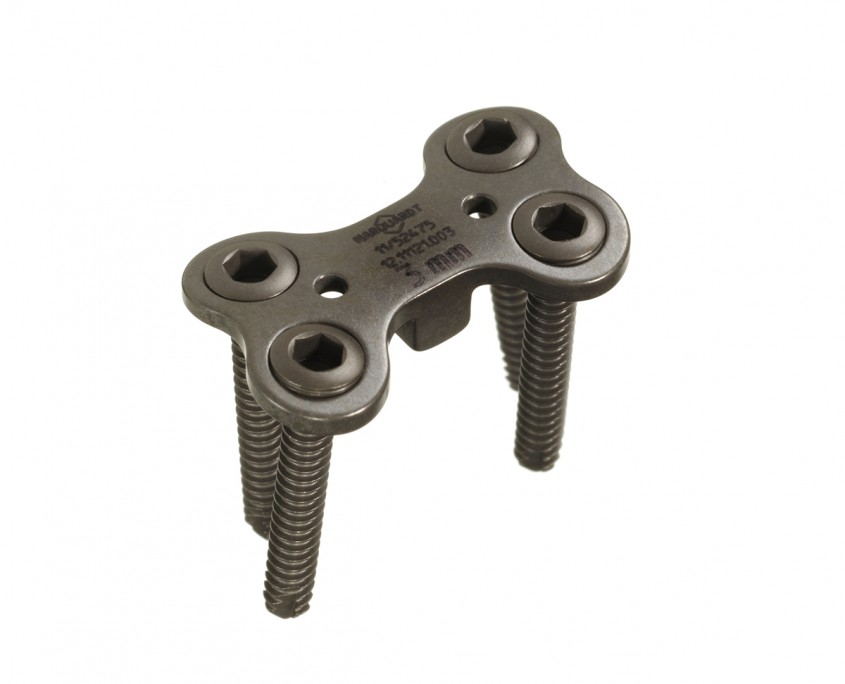

Marquardt Pedus-O plate

 Order No.  Description.
 12.11121.000  Base Width: 0 mm.
 12.11121.002  Base Width: 2 mm.
 12.11121.003  Base Width: 3 mm.
 12.11121.004  Base Width: 4 mm.
 12.11121.005  Base Width: 5 mm.
 12.11121.006  Base Width: 6 mm.

Cortical Locking Screw – width 2.3 mm

 Order No.  Description.
 12.03423.012  Length: 12 mm
 12.03423.014  Length: 14 mm
 12.03423.016  Length: 16 mm
 12.03423.018  Length: 18 mm
 12.03423.020  Length: 20 mm
 12.03423.022  Length: 22 mm
 12.03423.024  Length: 24 mm
 12.03423.026  Length: 26 mm

Cortical Screw – width 2.3 mm

 Order No.  Description.
 12.03424.012  Length: 12 mm
 12.03424.014  Length: 14 mm
 12.03424.016  Length: 16 mm
 12.03424.018  Length: 18 mm
 12.03424.020  Length: 20 mm
 12.03424.022  Length: 22 mm
 12.03424.024  Length: 24 mm
 12.03424.026  Length: 26 mm
