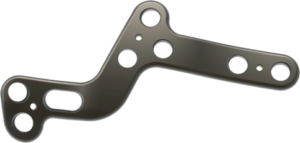

Pedus-R MIS WS: Calcaneus Plate

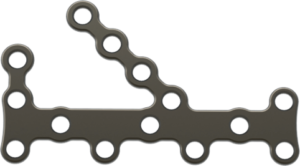

Pedus-R WS: Calcaneus Plate

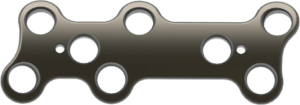

Pedus-R WS: Universal Plate
Pedus R
Description
Marquardts Pedus R provides possibilities for the rearfoot and more specifically fixation of calcaneus. The PEDUS-R Minimal Invasive plate was developed with side-specific anatomical shaping for the right and left heel bone. The plate can be inserted via a Sinus Tarsi access. The oblong hole allows optimal placement of the cannulated screw into the Sustentaculum Tali. The plate is available in a short and a long version.
Surgical Technique
The surgical technique for Marquardt Pedus R System:
- Marquardt Pedus R System – PDF
Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.
Order
Pedus-R MIS WS: Calcaneus Plate: Plate Thickness 1.6 mm
| Order No. | Size | Orientation |
| 12.11260.010 | Small | Right |
| 12.11260.110 | Small | Left |
| 12.11260.020 | Large | Right |
| 12.11260.120 | Large | Left |
Pedus-R WS: Calcaneus Plate: Plate Thickness 1.5 mm
| Order No. | Length |
| 12.11241.160 | 60 mm |
| 12.11241.170 | 70 mm |
| 12.11241.180 | 80 mm |
Pedus-R WS: Universal Plate: Plate Thickness 1.6 mm
| Order No. | Hole | Length |
| 12.11123.024 | 4 | 23.5 mm |
| 12.11123.045 | 6 | 45.0 mm |
| 12.11123.055 | 8 | 55.0 mm |
| 12.11123.076 | 12 | 76.0 mm |
