FITBONE

FITBONE is a fully implantable distraction system which gradually increases the distance between two bone segments through a telescope-like device. This miniaturized, mechatronic actuator, which carries the designation “FITBONE”, also stabilizes the two bone segments after the bone has been seperated to create a reproduction (or “growth”) zone.

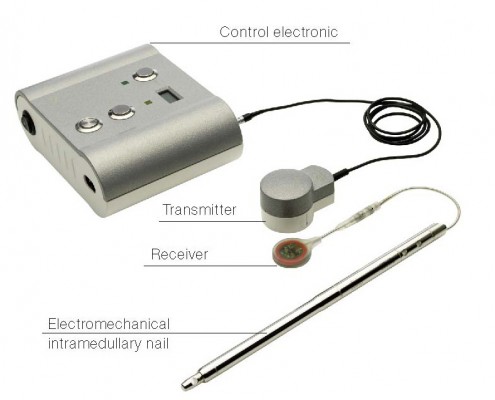

The internal drive system consists of an electromechanical segment, and an incorporated electronic module which receives electric power through high frequency transmission from outside. There is no connection between the implant, and the surface of the human body.
This completely internal feature allows, compared to the commonly used “external” systems, a comfortable, painless treatment in which the risk of infection is virtually eliminated, and reduces the formation of scar tissue significantly. There have been no infection-related complications whatsoever in FITBONE treatments up to date. Besides, previous FITBONE experiences have shown that the fully internal distraction method reduces the hospitalization period after surgery significantly, so that re-habilitation into the regular working-, household-, or school life is possible at early stage.

    • No pain during the treatment
  • Minimal risk of infection.

For more information please click here http://intens.wittenstein.de/en-en/

The surgical technique for Wittenstein FITBONE:

  • Wittenstein FITBONE – PDF

Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.

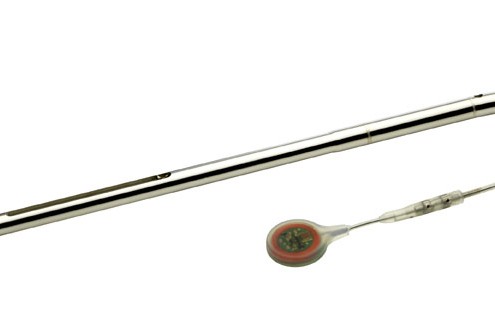

The following order numbers does not include the FITBONE FSA and TSA. These numbers can be found in the following PDF document:

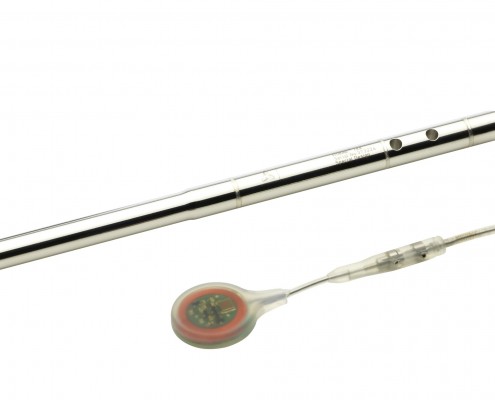

FITBONE TAA – Femur – CE-certified

 Order No.  Description
 60001383  Lenght: 205 mm. – Stroke: 40 mm. With: TAA 1140-4
 60001468  Lenght: 225 mm. – Stroke: 60 mm. With: TAA 1160-4
 60001404  Lenght: 245 mm. – Stroke: 80 mm. With: TAA 1180-4

FITBONE TAA – Tibia – CE-certified

 Order No.  Description
 60001501  Lenght: 205 mm – Stroke: 40 mm With: TAA 1140-4
 60001445  Lenght: 225 mm – Stroke: 60 mm With: TAA 1160-4
 60001348  Lenght: 245 mm – Stroke: 80 mm With: TAA 1180-4

FITBONE SAA – Femur – CE-certified

 Order No.  Description
 60000550  Lenght: 360 mm – Stroke: 60 mm – L1: 86 mm – With: SAA 1360-60-360
 60000489  Lenght: 380 mm. – Stroke: 40 mm – L1: 146 mm – With: SAA 1340-40-380
 60000223  Lenght: 380 mm – Stroke: 60 mm – L1: 106 mm – With: SAA 1360-60-380
 60000140
  Lenght: 400 mm – Stroke: 40 mm – L1: 166 mm – With: SAA 1340-40-400
 60000141  Lenght: 400 mm – Stroke: 60 mm – L1: 126 mm – With: SAA 1360-60-400
 60000142  Lenght: 420 mm – Stroke: 40 mm – L1: 186 mm – With: SAA 1340-40-420
 60000143  Lenght: 420 mm – Stroke: 60 mm – L1: 146 mm – With: SAA 1360-60-420
 60000144  Lenght: 440 mm – Stroke: 40 mm – L1: 206 mm – With: SAA 1340-40-440
 60000145  Lenght: 440 mm – Stroke: 60 mm – L1: 166 mm – With: SAA 1360-60-440
 60000146  Lenght: 460 mm – Stroke: 40 mm – L1: 226 mm – With: SAA 1340-40-460
 60000525  Lenght: 480 mm – Stroke: 40 mm – L1: 246 mm – With: SAA 1340-40-480
 60000383  Lenght: 500 mm – Stroke: 40 mm – L1: 266 mm – With: SAA 1340-40-500

FITBONE SAA – Femur – Non CE-certified

 Order No.  Description
 60000889  Lenght: 280 mm – Stroke: 40 mm – L1: 46 mm – With: SAA 1340-40-280
 60000859  Lenght: 300 mm. – Stroke: 40 mm – L1: 66 mm – With: SAA 1340-40-300
 60000671  Lenght: 320 mm – Stroke: 60 mm – L1: 46 mm – With: SAA 1360-60-320
 60001012
  Lenght: 340 mm – Stroke: 40 mm – L1: 106 mm – With: SAA 1340-40-340
 60000673  Lenght: 340 mm – Stroke: 60 mm – L1: 66 mm – With: SAA 1360-60-340
 60001013  Lenght: 360 mm – Stroke: 40 mm – L1: 126 mm – With: SAA 1340-40-360-
 60000809  Lenght: 360 mm – Stroke: 80 mm – L1: 41 mm – With: SAA 1380-80-360
 60000785  Lenght: 380 mm – Stroke: 80 mm – L1: 61 mm – With: SAA 1380-80-380
 60000781  Lenght: 460 mm – Stroke: 60 mm – L1: 186 mm – With: SAA 1360-60-460

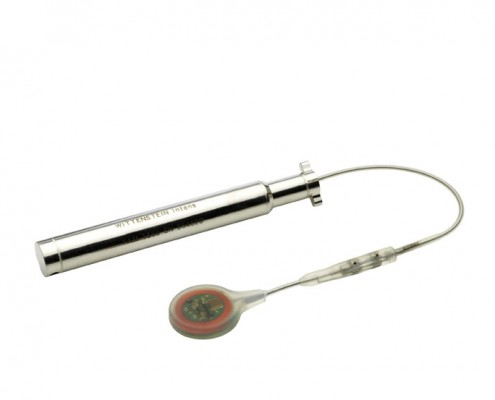

FITBONE TAM – Femur – Non CE-certified

 Order No.  Description
 TAM 1650  Lenght: 113 mm – Stroke: 50 mm.
 TAM 1675  Lenght: 138 mm – Stroke: 75 mm.
 TAM 16100  Lenght: 163 mm – Stroke: 100 mm.
