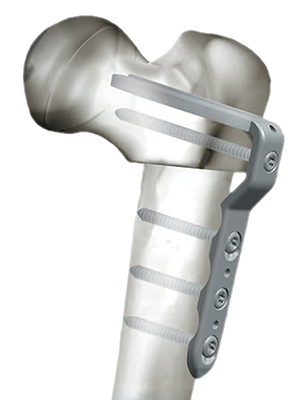

Locking Cannulated Blade

OrthoPediatrics announces the launch of the Locking Cannulated Blade Plate System.  This Locking Cannulated Blade Plate System enables the user to achieve (1) enhanced fixation in bone by using locking screws in the proximal and distal fragments, (2) restoration of the mechanical axis of the lower limb through use of multiple offsets and (3) the ability to achieve reproducible results with new and improved instrumentation.

The surgical technique for OthoPediatrics Locking Cannulated Blade:

  • OthoPediatrics Locking Cannulated Blade – PDF

Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.

Infants Plate



 Order No.  Description
 00-1200-2000  Angle: 90° – Offset: 5 mm – Blade Length: 25 mm – Hole: 2
 00-1200-2001  Angle: 90° – Offset: 5 mm – Blade Length: 30 mm – Hole: 2
 00-1200-2002  Angle: 90° – Offset: 5 mm – Blade Length: 35 mm – Hole: 2



Child Plate



 Order No.  Description
 00-1200-3500  Angle: 90° – Offset: 6 mm – Blade Length: 25 mm – Hole: 3
 00-1200-3501  Angle: 90° – Offset: 6 mm – Blade Length: 30 mm – Hole: 3
 00-1200-3502  Angle: 90° – Offset: 6 mm – Blade Length: 35 mm – Hole: 3
 00-1200-3503  Angle: 90° – Offset: 6 mm – Blade Length: 40 mm – Hole: 3
 00-1200-3504  Angle: 90° – Offset: 6 mm – Blade Length: 45 mm – Hole: 3
 00-1200-3505  Angle: 90° – Offset: 6 mm – Blade Length: 50 mm – Hole: 3
 00-1200-3506  Angle: 90° – Offset: 10 mm – Blade Length: 25 mm – Hole: 3
 00-1200-3507  Angle: 90° – Offset: 10 mm – Blade Length: 30 mm – Hole: 3
 00-1200-3508  Angle: 90° – Offset: 10 mm – Blade Length: 35 mm – Hole: 3
 00-1200-3509  Angle: 90° – Offset: 10 mm – Blade Length: 40 mm – Hole: 3
 00-1200-3510  Angle: 90° – Offset: 10 mm – Blade Length: 45 mm – Hole: 3
 00-1200-3511  Angle: 90° – Offset: 10 mm – Blade Length: 50 mm – Hole: 3
 00-1200-4000
  Angle: 100° – Offset: 6 mm – Blade Length: 25 mm – Hole: 3
 00-1200-4001  Angle: 100° – Offset: 6 mm – Blade Length: 30 mm – Hole: 3
 00-1200-4002  Angle: 100° – Offset: 6 mm – Blade Length: 35 mm – Hole: 3
 00-1200-4003  Angle: 100° – Offset: 6 mm – Blade Length: 40 mm – Hole: 3
 00-1200-4004  Angle: 100° – Offset: 6 mm – Blade Length: 45 mm – Hole: 3
 00-1200-4005  Angle: 100° – Offset: 6 mm – Blade Length: 50 mm – Hole: 3
 00-1200-5000  Angle: 130° – Offset: 0 mm – Blade Length: 40 mm – Hole: 4
 00-1200-5001  Angle: 130° – Offset: 0 mm – Blade Length: 45 mm – Hole: 4
 00-1200-5002  Angle: 130° – Offset: 0 mm – Blade Length: 50 mm – Hole: 4
 00-1200-5003
  Angle: 130° – Offset: 0 mm – Blade Length: 55 mm – Hole: 4
 00-1200-5004  Angle: 130° – Offset: 0 mm – Blade Length: 60 mm – Hole: 4



Adolescent Plate



 Order No.  Description
 00-1200-4500  Angle: 90° – Offset: 6 mm – Blade Length: 40 mm – Hole: 4
 00-1200-4501  Angle: 90° – Offset: 6 mm – Blade Length: 45 mm – Hole: 4
 00-1200-4502  Angle: 90° – Offset: 6 mm – Blade Length: 50 mm – Hole: 4
 00-1200-4503  Angle: 90° – Offset: 6 mm – Blade Length: 55 mm – Hole: 4
 00-1200-4504  Angle: 90° – Offset: 6 mm – Blade Length: 60 mm – Hole: 4
 00-1200-4505  Angle: 90° – Offset: 6 mm – Blade Length: 65 mm – Hole: 4
 00-1200-4506  Angle: 90° – Offset: 6 mm – Blade Length: 70 mm – Hole: 4
 00-1200-4514  Angle: 90° – Offset: 14 mm – Blade Length: 40 mm – Hole: 4
 00-1200-4515  Angle: 90° – Offset: 14 mm – Blade Length: 45 mm – Hole: 4
 00-1200-4516  Angle: 90° – Offset: 14 mm – Blade Length: 50 mm – Hole: 4
 00-1200-4517  Angle: 90° – Offset: 14 mm – Blade Length: 55 mm – Hole: 4
 00-1200-4518  Angle: 90° – Offset: 14 mm – Blade Length: 60 mm – Hole: 4
 00-1200-4519
  Angle: 90° – Offset: 14 mm – Blade Length: 65 mm – Hole: 4
 00-1200-4520  Angle: 90° – Offset: 14 mm – Blade Length: 70 mm – Hole: 4
 00-1200-7000  Angle: 130° – Offset: 0 mm – Blade Length: 45 mm – Hole: 4
 00-1200-7001  Angle: 130° – Offset: 0 mm – Blade Length: 50 mm – Hole: 4
 00-1200-7002  Angle: 130° – Offset: 0 mm – Blade Length: 55 mm – Hole: 4
 00-1200-7003  Angle: 130° – Offset: 0 mm – Blade Length: 60 mm – Hole: 4
 00-1200-7004  Angle: 130° – Offset: 0 mm – Blade Length: 65 mm – Hole: 4
 00-1200-7005  Angle: 130° – Offset: 0 mm – Blade Length: 70 mm – Hole: 4
 00-1200-7006
  Angle: 130° – Offset: 0 mm – Blade Length: 75 mm – Hole: 4
 00-1200-7007  Angle: 130° – Offset: 0 mm – Blade Length: 80 mm – Hole: 4
