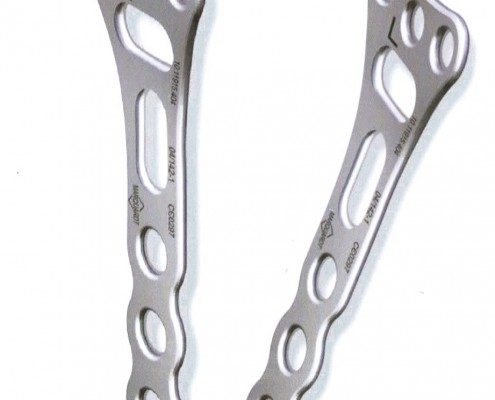

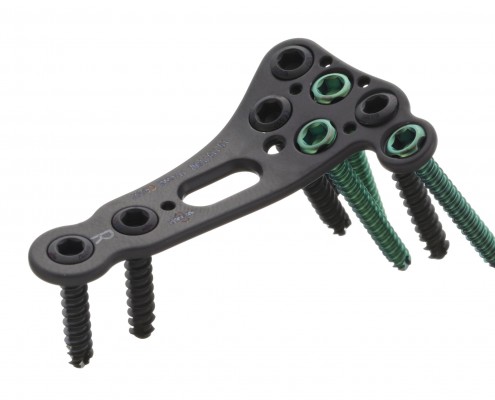

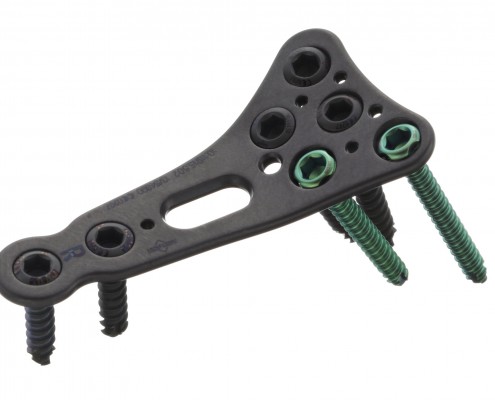

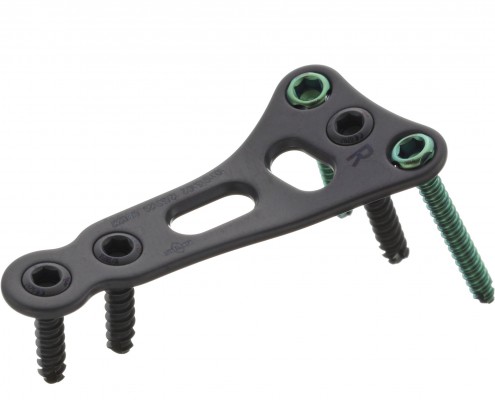

WINSTA-R

Angle stable distal radial plate system.

Indications:

• Extra articular fractures of AO-Type 23-A2 & A3
• Partial intra-articular fractures of AO-Type 23-B1 & B3
• Total intra articular fractures of AO-Type 23-C1 to C3

Product Features:

• Anatomically correct form with volar bending to reconstruct the “palmar tilt”, and secure support of the volar contour of the distal radius.
• The four distal plates holds are adjusted to the radioulnar curvature of the articular surface, and enable secure fixation of the distal radius even in the case of intra-articular fractures via subchondral positioning of the stabilization screws and pins.
• The given direction of the four angle stable screws of pins at the distal plate end corresponds to the physiological dorsovolar inclination of the articular surface, and enables the screws or pins to be placed in the ulnar fragment as well as in the styloid process of the radius.
