PediNail

The PediNail Pediatric Femoral Nail system offers a number of solutions to problems surgeons have faced in the past in attempting to utilize a rigid intramedullary nail for fracture fixation in children.

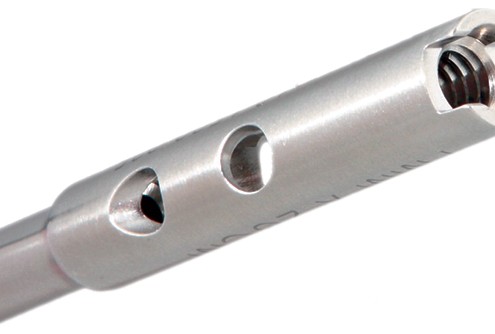

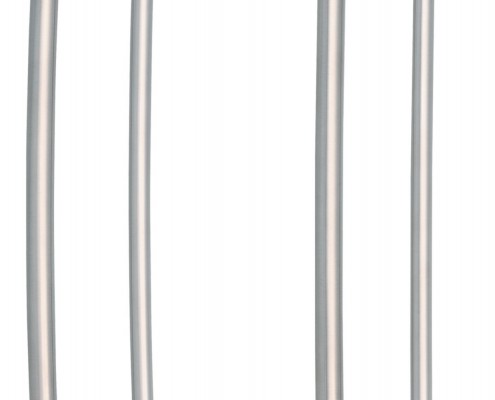

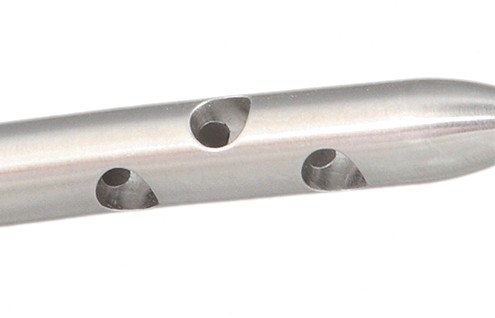

It is anatomically designed with a proximal and distal bend to facilitate insertion in the tip of the lateral greater trochanter, avoiding a medial wall fracture in the proximal segment, and the potential for varus malalignment. The anatomic bow provides a fit for the pediatric patient not found with adult implants. With the immediate stability afforded by proximal and distal locking screws, a large nail with tight intramedullary fit is not required.

Features and benefits:

  • Complex 3 dimensional geometry, results in anatomically appropriate design.
  • Advanced surgical technique does not endanger the piriformis fossa.
  • Smaller proximal diameter allows for easier insertion without the need for excessive reaming.
  • Minimally invasive technique facilitates early mobility and return to normal activities.
  • Complete set of easy to use instrumentation.

The surgical technique for OrthoPediatrics PediNail:

  • OrthoPediatrics PediNail – PDF

Note: Please have patience for the Surgical Technique to load. The time depends on your bandwidth.

Left Femur Implant

 Order No.  Description
 10-1500-071  Width: 7 mm – Length: 200 mm
 10-1500-072  Width: 7 mm – Length: 220 mm
 10-1500-073  Width: 7 mm – Length: 240 mm
 10-1500-074  Width: 7 mm – Length: 260 mm
 10-1500-075  Width: 7 mm – Length: 280 mm
 10-1500-076  Width: 7 mm – Length: 300 mm
 10-1500-081  Width: 8 mm – Length: 240 mm
 10-1500-082  Width: 8 mm – Length: 260 mm
 10-1500-083  Width: 8 mm – Length: 280 mm
 10-1500-084  Width: 8 mm – Length: 300 mm
 10-1500-085  Width: 8 mm – Length: 320 mm
 10-1500-086  Width: 8 mm – Length: 340 mm
 10-1500-087  Width: 8 mm – Length: 360 mm
 10-1500-091  Width: 9 mm – Length: 280 mm
 10-1500-092  Width: 9 mm – Length: 300 mm
 10-1500-093  Width: 9 mm – Length: 320 mm
 10-1500-094  Width: 9 mm – Length: 340 mm
 10-1500-095  Width: 9 mm – Length: 360 mm
 10-1500-096  Width: 9 mm – Length: 380 mm
 10-1500-0005
  5 mm Nail End Cap
 10-1500-0010  10 mm Nail End Cap
 10-1500-0015  15 mm Nail End Cap
 10-1500-0020  20 mm Nail End Cap

Left PediNail XL Implant

 Order No.  Description
 10-1500-077  Width: 7 mm – Length: 320 mm
 10-1500-078  Width: 7 mm – Length: 340 mm
 10-1500-079  Width: 7 mm – Length: 360 mm
 10-1500-080  Width: 7 mm – Length: 380 mm
 10-1500-088  Width: 8 mm – Length: 380 mm
 10-1500-089  Width: 8 mm – Length: 400 mm
 10-1500-090  Width: 8 mm – Length: 420 mm
 10-1500-097  Width: 9 mm – Length: 400 mm
 10-1500-098  Width: 9 mm – Length: 420 mm
 10-1500-101  Width: 10 mm – Length: 300 mm
 10-1500-102  Width: 10 mm – Length: 320 mm
 10-1500-103  Width: 10 mm – Length: 340 mm
 10-1500-104  Width: 10 mm – Length: 360 mm
 10-1500-105  Width: 10 mm – Length: 380 mm
 10-1500-106  Width: 10 mm – Length: 400 mm
 10-1500-107  Width: 10 mm – Length: 420 mm



Right Femur Implant

 Order No.  Description
 10-1500-021  Width: 7 mm – Length: 200 mm
 10-1500-022  Width: 7 mm – Length: 220 mm
 10-1500-023  Width: 7 mm – Length: 240 mm
 10-1500-024  Width: 7 mm – Length: 260 mm
 10-1500-025  Width: 7 mm – Length: 280 mm
 10-1500-026  Width: 7 mm – Length: 300 mm
 10-1500-031  Width: 8 mm – Length: 240 mm
 10-1500-032  Width: 8 mm – Length: 260 mm
 10-1500-033  Width: 8 mm – Length: 280 mm
 10-1500-034  Width: 8 mm – Length: 300 mm
 10-1500-035  Width: 8 mm – Length: 320 mm
 10-1500-036  Width: 8 mm – Length: 340 mm
 10-1500-037  Width: 8 mm – Length: 360 mm
 10-1500-041  Width: 9 mm – Length: 280 mm
 10-1500-042  Width: 9 mm – Length: 300 mm
 10-1500-043  Width: 9 mm – Length: 320 mm
 10-1500-044  Width: 9 mm – Length: 340 mm
 10-1500-045  Width: 9 mm – Length: 360 mm
 10-1500-046  Width: 9 mm – Length: 380 mm
 10-1500-0005
  5 mm Nail End Cap
 10-1500-0010  10 mm Nail End Cap
 10-1500-0015  15 mm Nail End Cap
 10-1500-0020  20 mm Nail End Cap

Right PediNail XL Implant

 Order No.  Description
 10-1500-027  Width: 7 mm – Length: 320 mm
 10-1500-028  Width: 7 mm – Length: 340 mm
 10-1500-029  Width: 7 mm – Length: 360 mm
 10-1500-030  Width: 7 mm – Length: 380 mm
 10-1500-038  Width: 8 mm – Length: 380 mm
 10-1500-039  Width: 8 mm – Length: 400 mm
 10-1500-040  Width: 8 mm – Length: 420 mm
 10-1500-047  Width: 9 mm – Length: 400 mm
 10-1500-048  Width: 9 mm – Length: 420 mm
 10-1500-051  Width: 10 mm – Length: 300 mm
 10-1500-052  Width: 10 mm – Length: 320 mm
 10-1500-053  Width: 10 mm – Length: 340 mm
 10-1500-054  Width: 10 mm – Length: 360 mm
 10-1500-055  Width: 10 mm – Length: 380 mm
 10-1500-056  Width: 10 mm – Length: 400 mm
 10-1500-057  Width: 10 mm – Length: 420 mm
